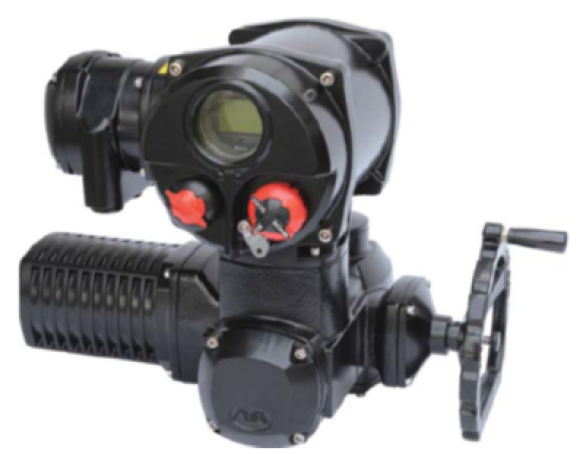

Multi Turn Electric Actuator


Publish Date : 03-Mar-2016
Category : Products Control Valve

Price :

Call Us
Get Quote

Description


Technical Parameter

  • Shell Enclosure : IP67 (IP68 optional, neme4 and 6
  • Power : Standard 380V AC/3ph ; Optional 110/220V AC/1ph, 440V AC/3ph ; 50/60Hz, ±10%
  • Compatible with Gate Valve
  • Motor : Asynchronous motor
  • Limit switch 1x Open/Close, SPDT,250V AC 10A (on/off model)
  • Auxxillary limit switch 1x Open/Close, SPDT,250V AC 10A (on/off model)
  • Torque switch 1x Open/Close, SPDT,250V AC 10A
  • Operating temperature : Internal-place thermal protection,  Open 120C  ± 5˚C /Close 120˚C ±5˚C
  • Manual Operation : Decluthing mecahnism, with handwheel operation
  • Self-locking device : Self-locking by worm and worm gear
  • Space heater : 30W (110/220V AC) Condensation preventing (according to conditions, can be adjusted)
  • Condult entry : Doube seal 3xNPT3/4”
  • Ambieent temperature : -30˚C or -70˚C
  • Lubricatin : Special oil for actuators
  • Material : Ductile Iron, High-strength alumunium alloys, alumunium bronze, polycarbonate
  • Ambient humidity : Max 90% RH
  • Anti-vibratin : X Y Z 10g,02-34 Hz, 30 minutes
  • External coating : Dry powder, epoxy polyester, high anti-corrosion
  • Overload protection : Torque peak overload protection
  • Display screen : LED display (smart regulation type)
  • Setting mode : Non-Intrusive setting (without opening the cover set type)
  • Electrically Intergrate control unit a non-invasive rotary switch
